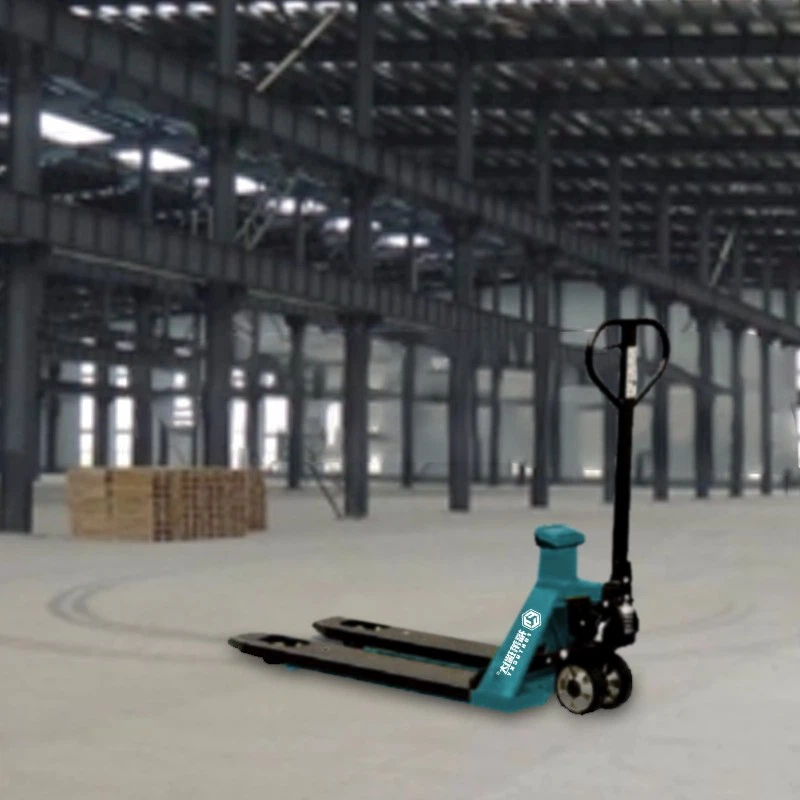

Electronic Weighing Truck
video

Electronic Weighing Truck

The electronic scale truck, also known as electronic scale forklift, is a weighing system composed of high-precision weighing sensor and intelligent digital display instrument added on the basis of traditional manual hydraulic truck. This design allows handling and weighing to be synchronized, which greatly improves working efficiency and accuracy. Its main components include frame, fork, hydraulic system, weighing sensor, digital display instrument and battery pack. The electronic scale pallet truck not only has a high loading capacity, but also has a wide range of uses in factories, mines, warehouses, stations, freight yards, logistics and distribution centers and other places.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Electronic Weighing Truck



Product Introduction



The electronic scale truck, also known as electronic scale forklift, is a weighing system composed of high-precision weighing sensor and intelligent digital display instrument added on the basis of traditional manual hydraulic truck. This design allows handling and weighing to be synchronized, which greatly improves working efficiency and accuracy. Its main components include frame, fork, hydraulic system, weighing sensor, digital display instrument and battery pack. The electronic scale pallet truck not only has a high loading capacity, but also has a wide range of uses in factories, mines, warehouses, stations, freight yards, logistics and distribution centers and other places.

product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
Features & Advantages



  • Efficient and convenient: handling and weighing are synchronized.
  • High precision: equipped with high-precision weighing sensor.
  • Save manpower: automatic operation.
  • Economical: one machine can be used for two purposes, both as a pallet truck and weighing equipment.
  • Convenient to use: no need for external power supply, a single charge can be used for a longer time.
  • Safe and reliable: equipped with safety protection devices.



Specifications



Parameters

Unit

PTS-1

Capacity

kg

2000

Overall Size

mm

1540*560*1240

Service Weight

kg

168

Min. Fork Height

mm

76/85

Max. Fork Height

mm

115

Fork Size

mm

1150*50*180

Outer Width between Forks

mm

560/680

Wheel Type

/

PU

Front Wheel Size

mm

80*70

Driving Wheel Size

mm

70*190

Number of Fork Wheels

pcs

5

Max. Travel Speed

km/h

4.5

Max. Lifting Speed

mm/s

22



Applications



Warehouse management, logistics and distribution, manufacturing, retail wholesale.
