Double Station Rail Guided Vehicle
Description
Technical Parameters
Double station Rail Guided Vehicle
Product Description

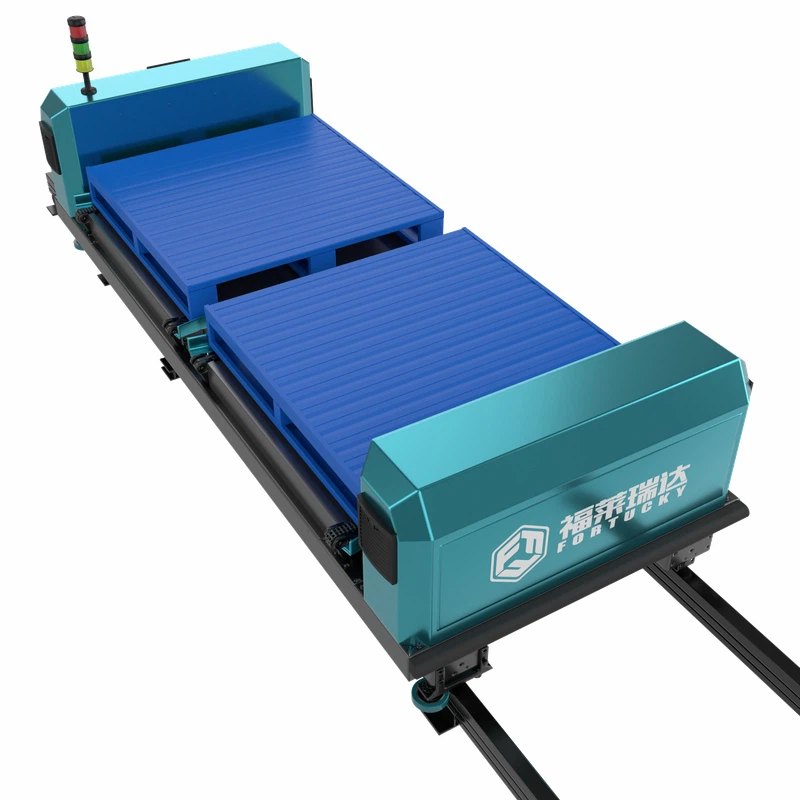

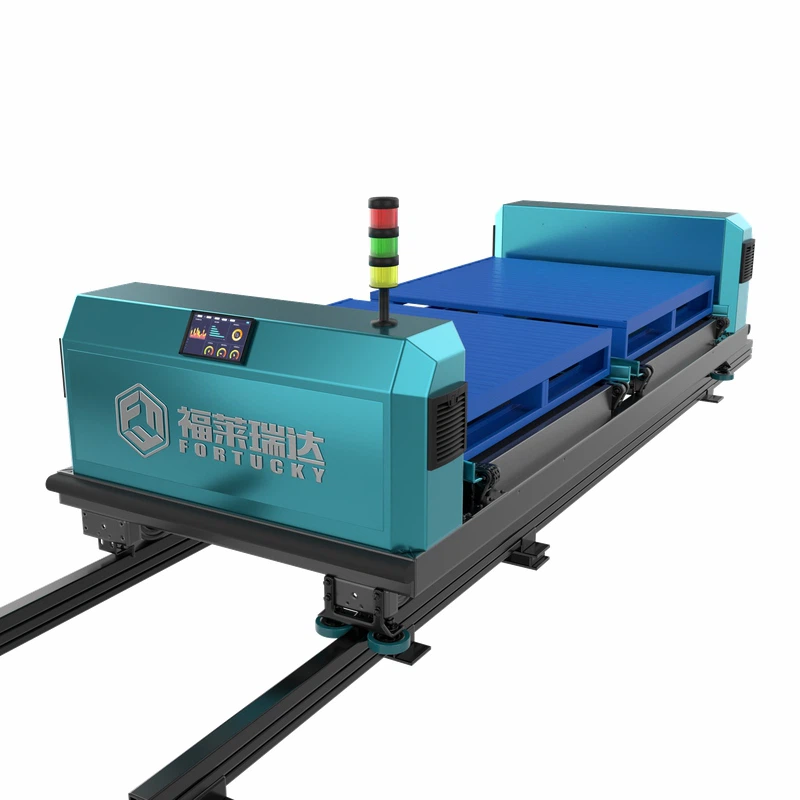

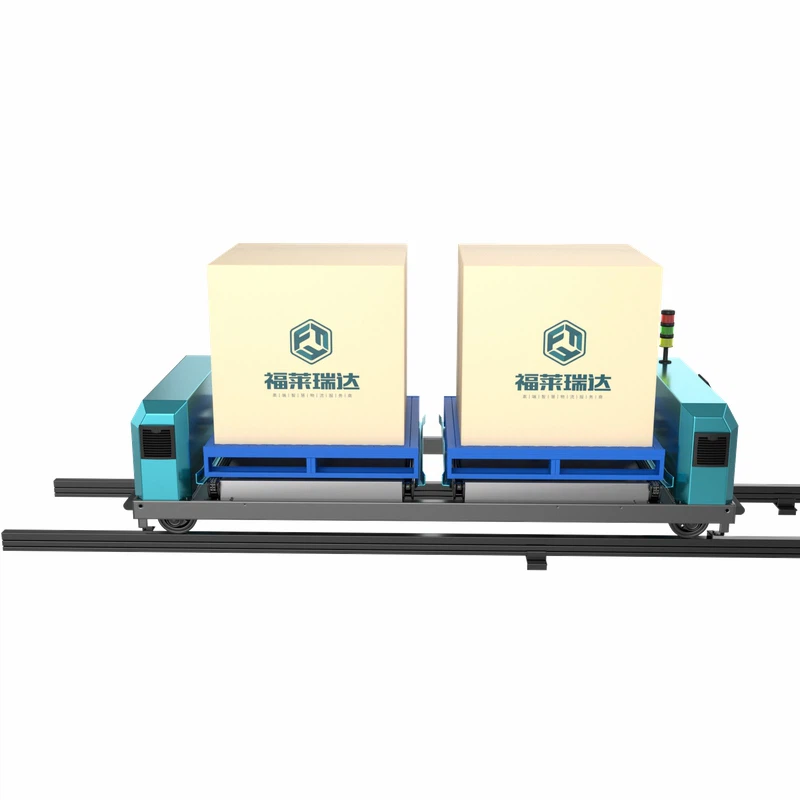

Double-station Rail Guided Vehicle is a type of double-station straight shuttle vehicle. It reciprocates on a linear track and transports pallets horizontally or vertically as needed. The double-station RGV has two working positions and can transport two pallets of goods at a time. The efficiency is significantly compared to the single-station RGV. It can be divided into roller double-station Rail Guided Vehicle and chain double-station Rail Guided Vehicle.
Product Features
- Fast speed: high and adjustable running speed, the running speed can reach more than 180m/min;
- More efficient: double station supports simultaneous transfer of two baskets of materials or empty and full exchange of one delivery and one collection;
- Modular combination: easy installation and maintenance
- Widely used: e-commerce, daily necessities, electronic manufacturing, machinery manufacturing, home furnishing, textiles, tobacco, medicine...
Parameters
|
Technical Parameters |
Unit |
Typical range/value |
|
Rated load |
kg |
1000 |
|
Driving speed |
m/min |
≤200 |
|
Driving acceleration |
m/s² |
2 |
|
Positioning accuracy |
mm |
±3 |
|
GPS |
|
Laser/barcode positioning |
|
Control method |
|
PLC control |
|
Drive method |
|
Motor driven |
|
Operation method |
|
Manual/Single -machine/connecting machine/maintenance |
|
Communication method |
|
Wireless Ethernet |
|
Power supply |
|
Slide |
|
Track |
|
Dedicated orbit, dual -track, straight operation, running |
Product Classification
It can be divided into roller dual -station Rail Guided Vehicle and chain dual -station Rail Guided Vehicle.
Application Scenarios

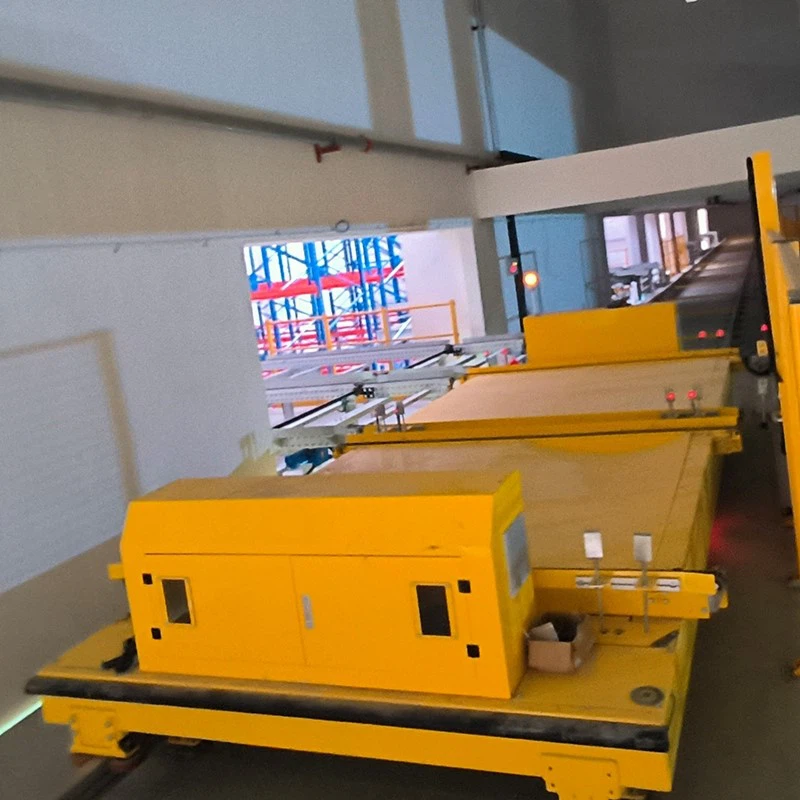

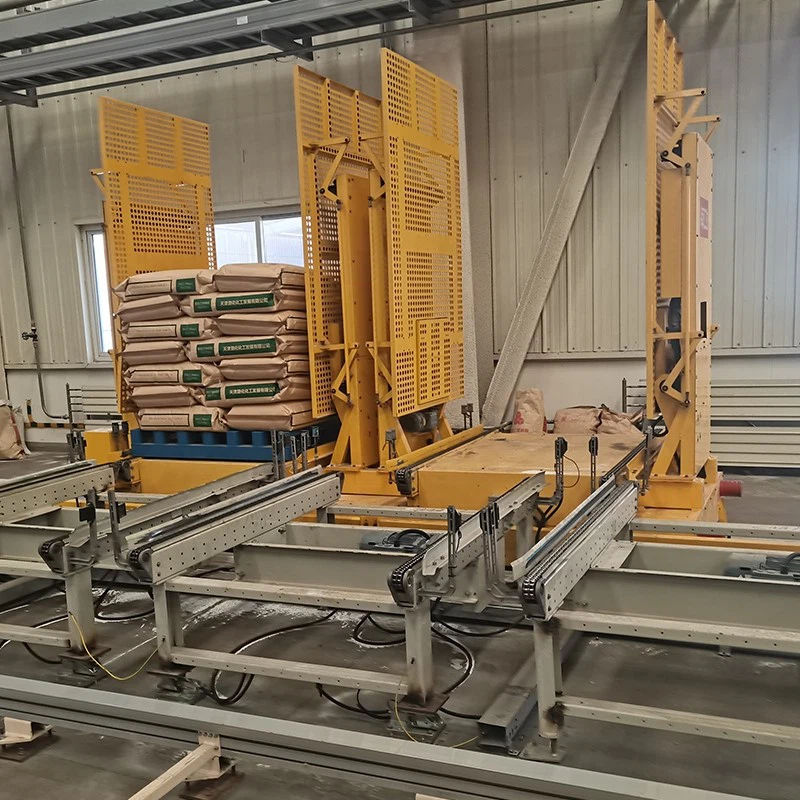

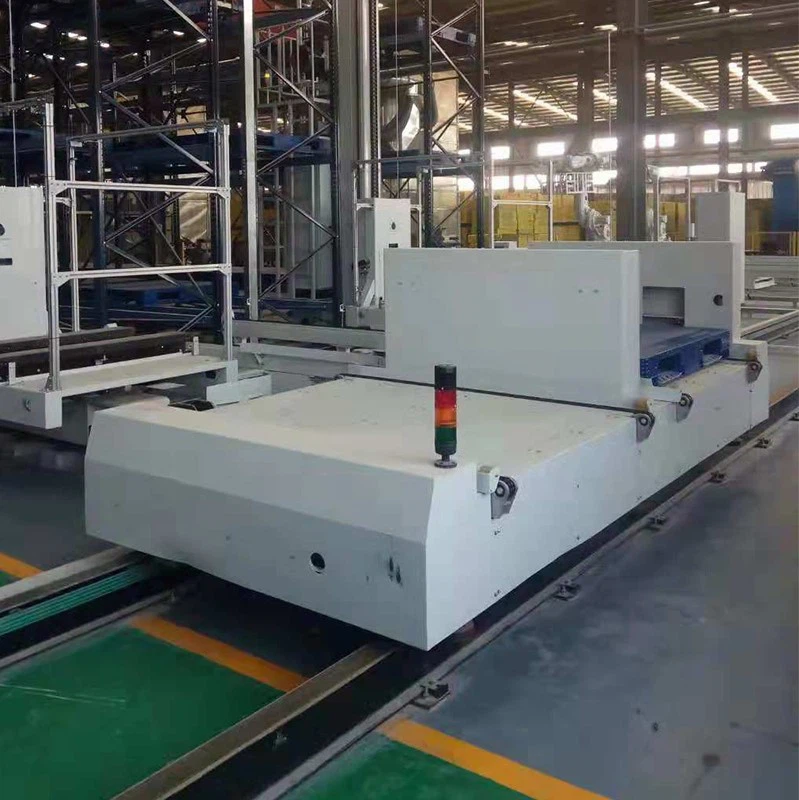

The shuttles produced by Fortucky have become a series, and are widely used in dense three -dimensional warehouses, conveying systems, sorting systems, and smart factory systems.
The shuttle car developed is beautiful in appearance, adjustable, and stable performance. The shuttles used in high -density three -dimensional warehouses can be automatically seamlessly connected with the stacking machine, which greatly improves the storage capacity and storage and transportation efficiency of the three -dimensional warehouse.
