Tank Four-way Shuttle

The four-way Shuttle for Container Transport is a highly automated intelligent handling equipment independently developed by Fortucky. It is used for material box, carton, and normative unit goods access and integrates high flexibility, high adaptability and high flexibility, being widely used in goods-to-person.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

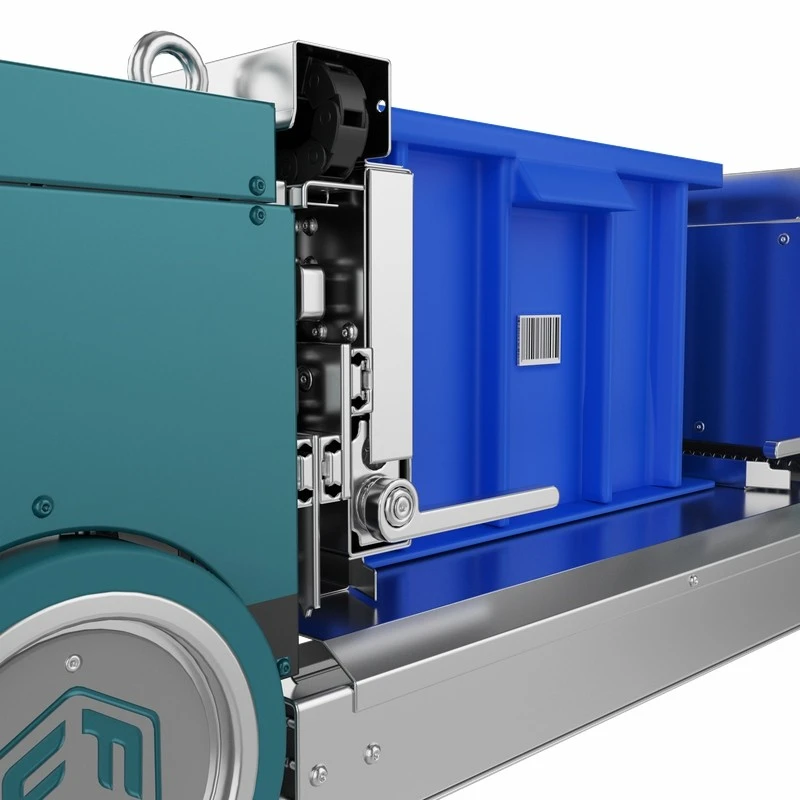

Tank Four-way Shuttle



Product Introduction



The four-way Shuttle for Container Transport is a highly automated intelligent handling equipment independently developed by Fortucky. It is used for material box, carton, and normative unit goods access and integrates high flexibility, high adaptability and high flexibility, being widely used in goods-to-person.

product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
product-800-800
Features & Advantages



  • Four-way travelling: It can be shuttled in four ways and three dimensions, realizing cross-aisle operation. It can reach any goods position with the high-speed elevator.
  • Automatic control: equipped with advanced control systems; capable of automatic navigation, path planning and cargo identification.
  • High storage density: significantly improving the storage space utilization and operational efficiency, optimizing the enterprise supply chain and reducing storage operating costs.
  • Enhanced efficiency: automated operation reduces the need for manual handling and improves operational efficiency and accuracy.
  • Adaptable: The model size can be customized for various sizes of goods and material containers.
  • Safety system: including safety features such as obstacle detection, emergency stop and fault alarm.



Specifications



Parameters

Unit



Basic Data

Overall Size

mm

L1145*W760*H370



Goods Size

mm

L600*W400*H300



Service Weight

kg

170



Rated Load Capacity

t

0.05

Performance Metrics

Drive Speed

m/s

4



Acceleration

m/s²

2



Time for Stretching Fork

s

3



Turning Time

s

2



Location Precision

mm

±2

Battery Metrics

Battery Type

/

LiFePO4



Performance

kw·h

≥0.4



Duration

h

8-10



Charging Time

h

≤4



Recycling Times of Charging and Discharging Process

times

2000



Way of Charging

/

Automatic



Applicable Temperature

-10 ~ 45



Power Display

/

Yes

Safety

Laser Obstacle Avoidance

/

Yes



Fog Detector

/

Customized



Temperature Detector

/

Customized



Emergency Stop Button

/

Yes



Pallet Detector

/

Enabled



Applications



FMCG industry, metal industry, silicon-based industry, engineering machinery industry, automotive industry, cold chain industry, electronics industry, pharmaceutical industry and chemical industry.
