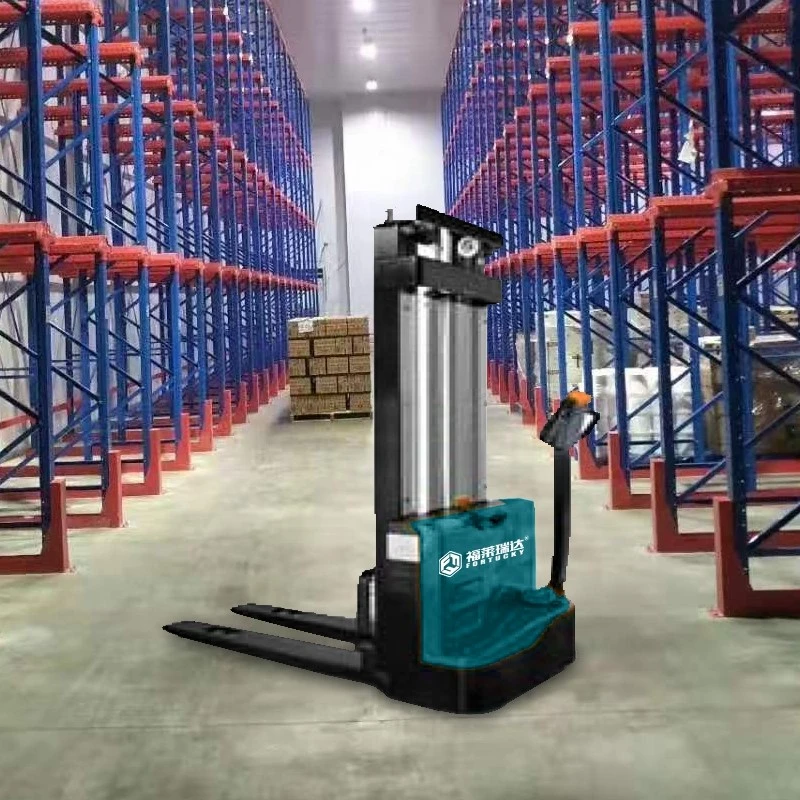

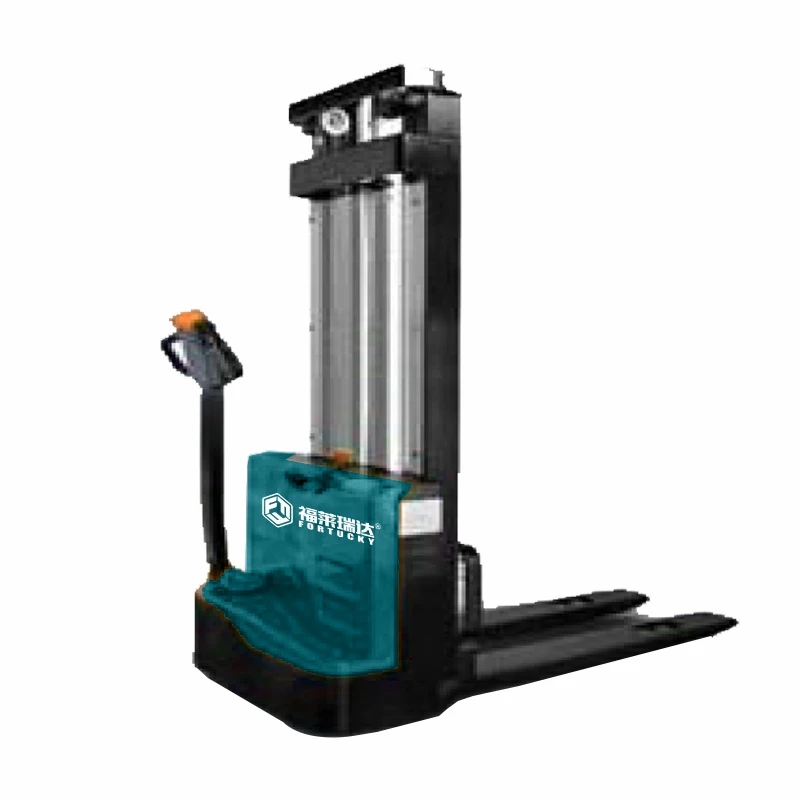

Fully Electric Stacker

The fully electric stacker is a type of electric stacker, which is used in workshops, warehouses, and upstairs. It is suitable for long-distance transportation and can be used for single-sided pallets and double-sided pallets. The advantages of electric stackers are that they are small in size, easy to set up, and flexible in operation. They are the preferred products for enterprises.

Send Inquiry

Add To Inquiry

Description

Technical Parameters

Fully Electric Stacker

Product Introduction

Product Features

Electronic power steering, light and quiet.
Dual-way descending solenoid valve, three descending speed modes.
AC drive motor, brushless and maintenance-free.
Automatic lifting limit, long-life proximity switch.
Patented floating force-enhancing mechanism of the drive unit.

Parameters

Model	Unit	PLD1267	PLD1268	PLD1269	PLD1273
*Rated load	kg	1500	1500	1500	1500
Drive mode		Electric (battery)	Electric (battery)	Electric (battery))	Battery
Drive mode		Stand-drive	Stand-drive	Stand-drive	Stand-drive
*Load distance	mm	600	600	600	600
Wheelbase	mm	1355	1355	1355	1355
*Weight (including battery)	kg	1220	1220	1220	1350
Tire type		Polyurethane	Polyurethane	Polyurethane	Polyurethane
*Lifting height	mm	1600	2500	3000	5000
Maximum height of vehicle during operation	mm	2150	3050	3550	5500
Height after fork lowering	mm	85	85	85	85
Overall length	mm	2010	2010	2010	2010
Body width	mm	790	790	790	790

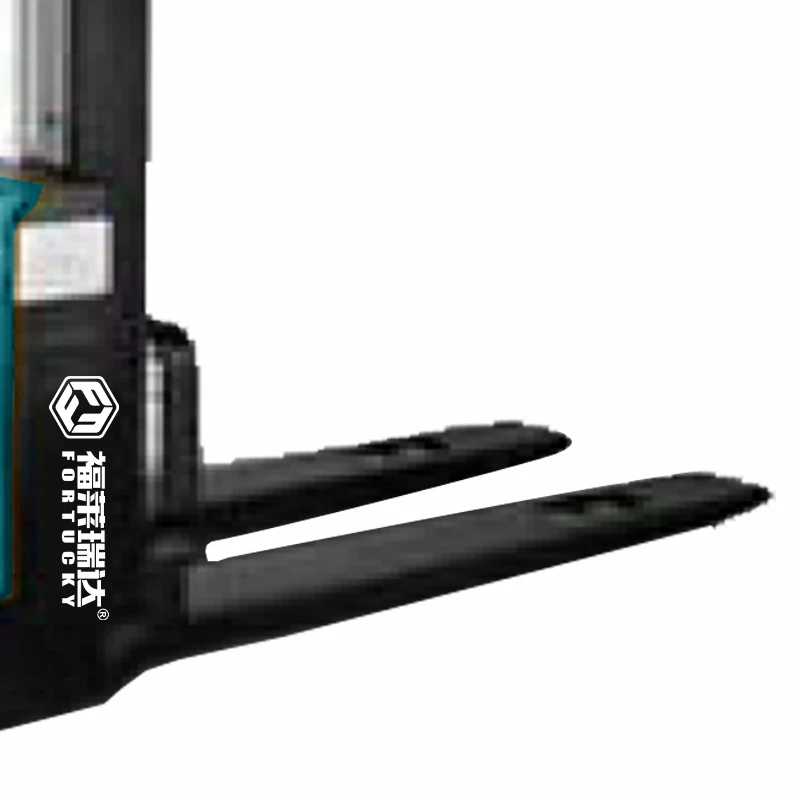

Fork size (length x width x thickness)	mm	1150x170x60	1150x170x60	1150x170x60	1150x170x60
Fork outer width	mm	570/685	570/685	570/685	570/685
Fork leg ground clearance	mm	25	25	25	25
Minimum turning radius	mm	1600	1600	1600	1600
Drive motor power	kw	1.2	1.2	1.2	1.2
Increasing motor power	kw	3.3	3.3	3.3	3.3

Application Scenarios

It can be widely used in petroleum, chemical, pharmaceutical, textile, military, paint, pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures. It can also enter cabins, carriages and containers to load, unload, stack and carry out pallet cargo handling operations.
