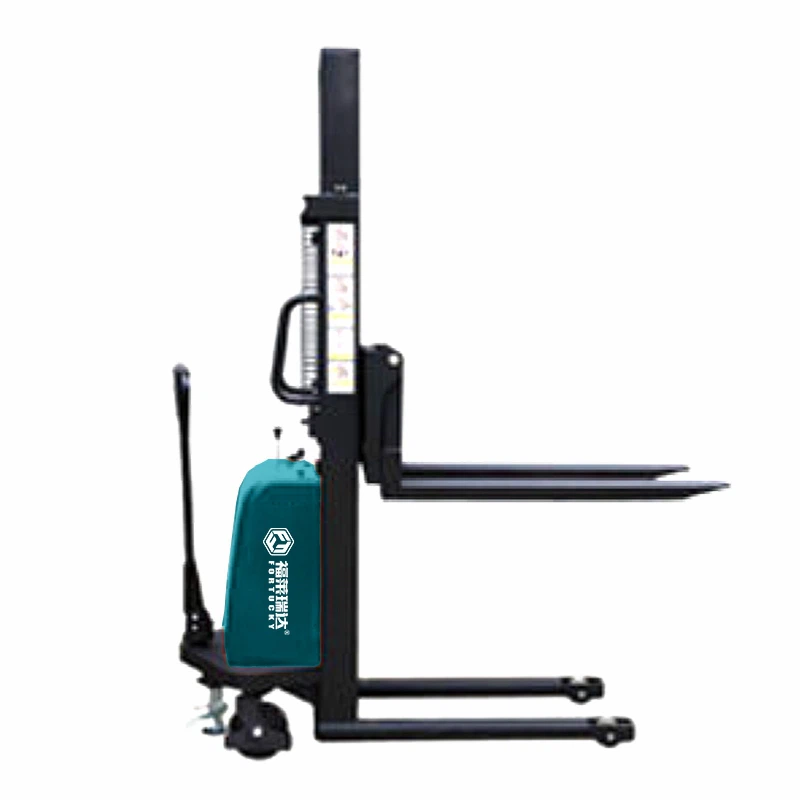

Semi-electric Stacker Truck

A semi-electric stacker is a variant of an electric forklift, featuring a simple structure, agile control, excellent micro-mobility, and superior explosion-proof safety performance. It is well-suited for tasks in narrow passages and limited spaces, making it an ideal piece of equipment for pallet handling in high-bay storage facilities and workshop loading and unloading operations. It is recognized by the International Organization for Standardization as industrial vehicles.

Send Inquiry

Add To Inquiry

Description

Technical Parameters

Semi-electric Stacker Truck

Product Introduction

Product Features

Innovative rear axle structure.
With pneumatic spring handle return device for ease of operation, and high-quality steel formed mast.
Italian imported hydraulic pump (with an option for domestically produced high-quality hydraulic pump), offering lighter push-pull force.
More lightweight and agile, easy to use.

Parameters

Model	Unit	PLD1305	PLD1306	PLD1307
Rated load (Q)	kg	1000	1500	2000
Load center (C)	mm	400	400	400
Maximum height of fork (H)	mm	1600	1600	1600
Fork length (L)	mm	1000	1000	1000
Fork outer width (E)	mm	300-850	320-850	320-850
Minimum turning radius (R)	mm	1350
Front and rear wheelbase (Y)	mm	1180
Front wheel distance (X)	mm	322
Lifting motor	v/kw	12/1.6
Battery	v/Ah	12/120
charger	v/A	12/15/
Machine length (A)	mm	1670
Machine width (B)	mm	865
Machine height (H1)	mm	2060
Machine weight	kg	350	365	390

Application Scenarios

It can be widely used in petroleum, chemical, pharmaceutical, textile, military, paint, pigment, coal and other industries, as well as ports, railways, freight yards, warehouses and other places containing explosive mixtures. It can also enter cabins, carriages and containers to load, unload, stack and carry out pallet cargo handling operations.
