Tank Two-way Shuttle

The tank two-way shuttle is an intelligent handling device that runs on shelf tracks and is used to realize the storage and retrieval of boxes or cartons. It has a lightweight aluminum structure and a precise telescopic finger cargo grabber, which can store and retrieve boxes in single-depth or double-depth cargo locations, and has the advantages of high speed, high efficiency, compact space and multi-depth storage.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Tank Two-Way Shuttle



Product Description



The tank two-way shuttle is an intelligent handling device that runs on shelf tracks and is used to realize the storage and retrieval of boxes or cartons. It has a lightweight aluminum structure and a precise telescopic finger cargo grabber, which can store and retrieve boxes in single-depth or double-depth cargo locations, and has the advantages of high speed, high efficiency, compact space and multi-depth storage.

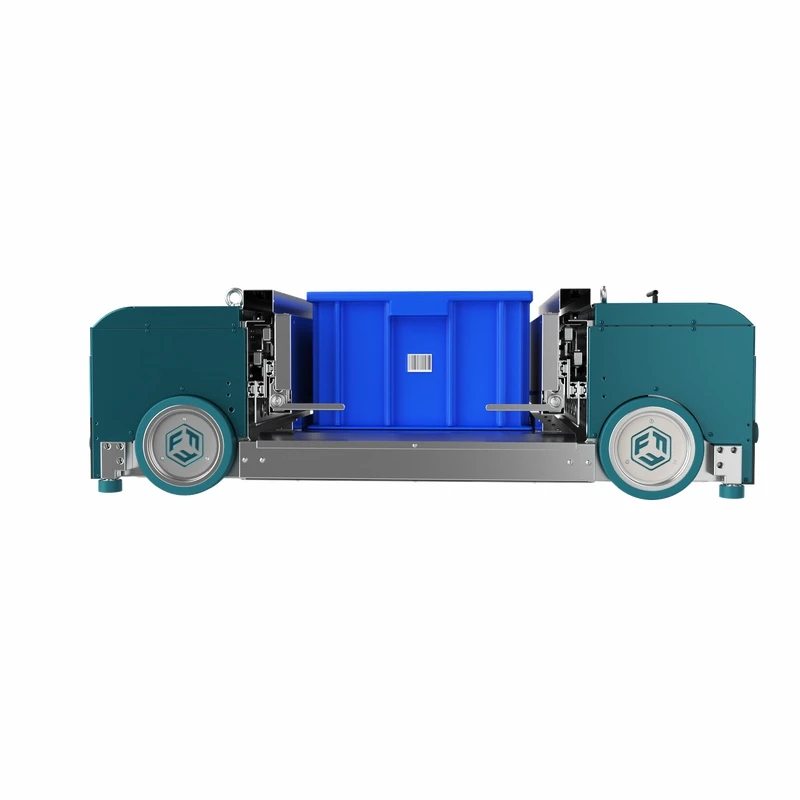

product-800-800

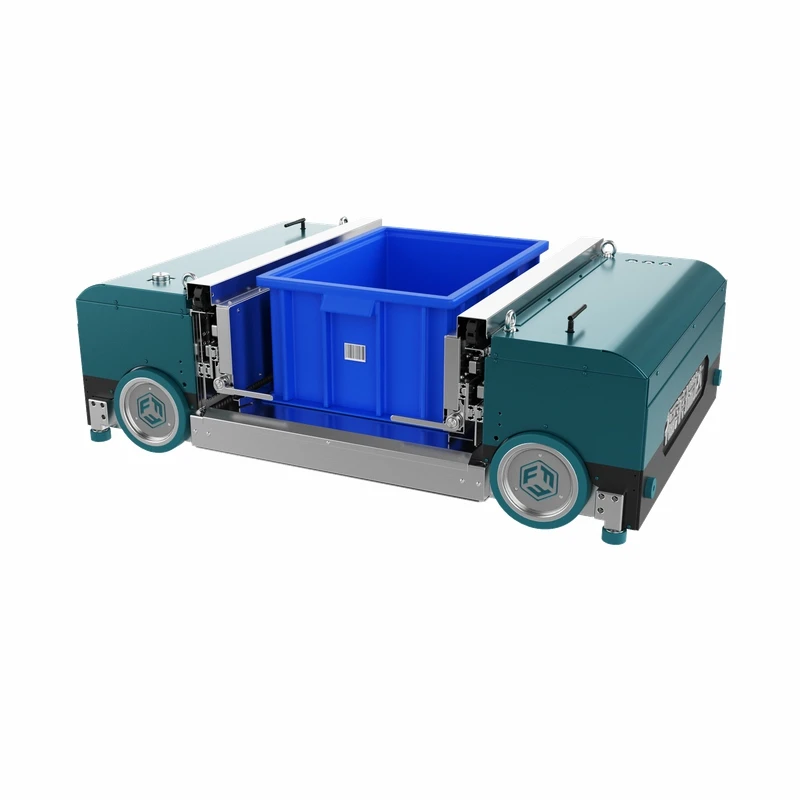

product-800-800

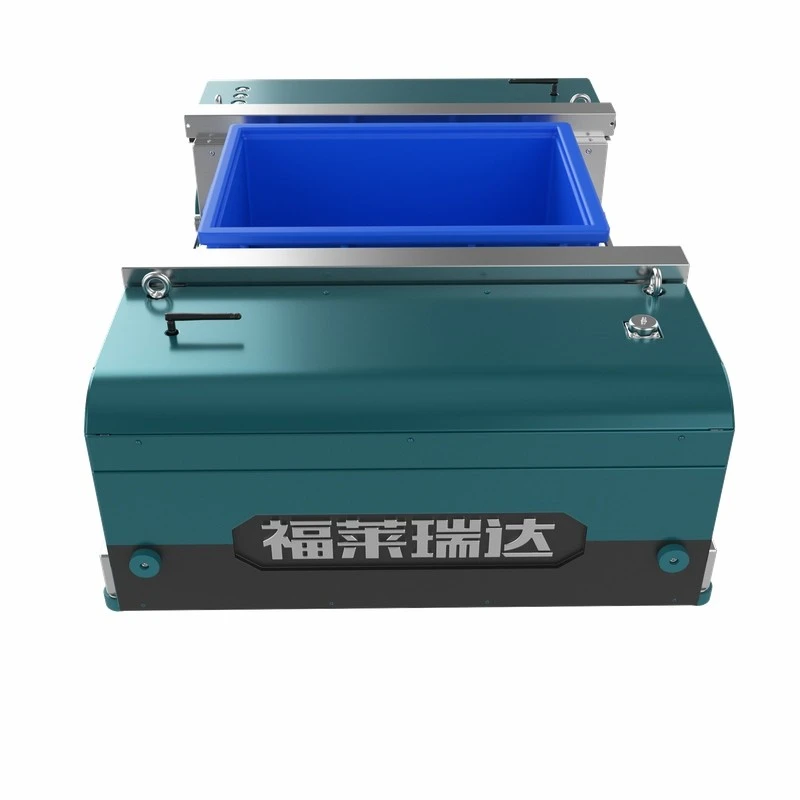

product-800-800

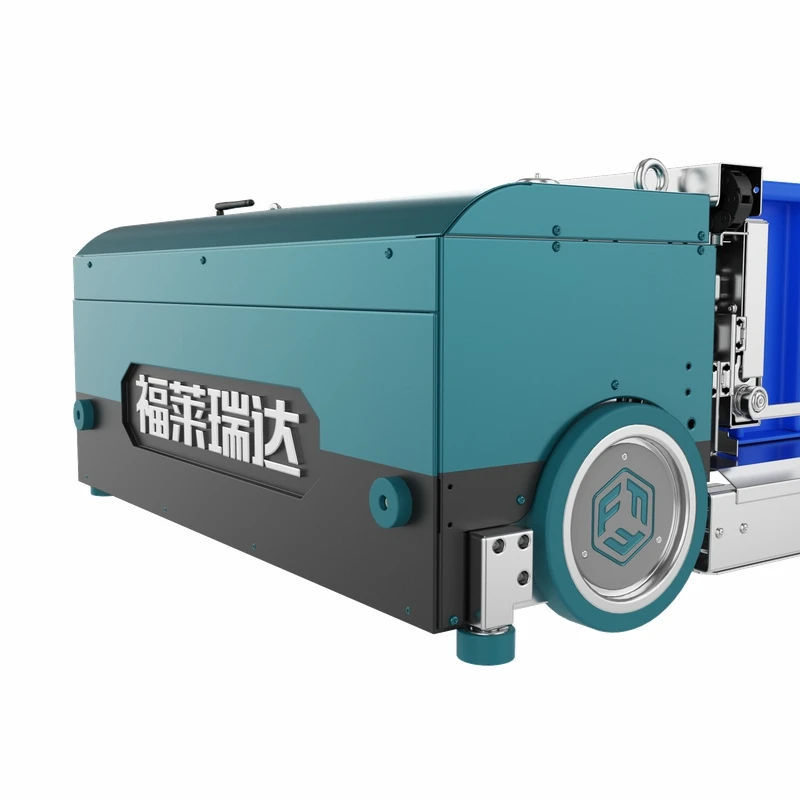

product-800-800

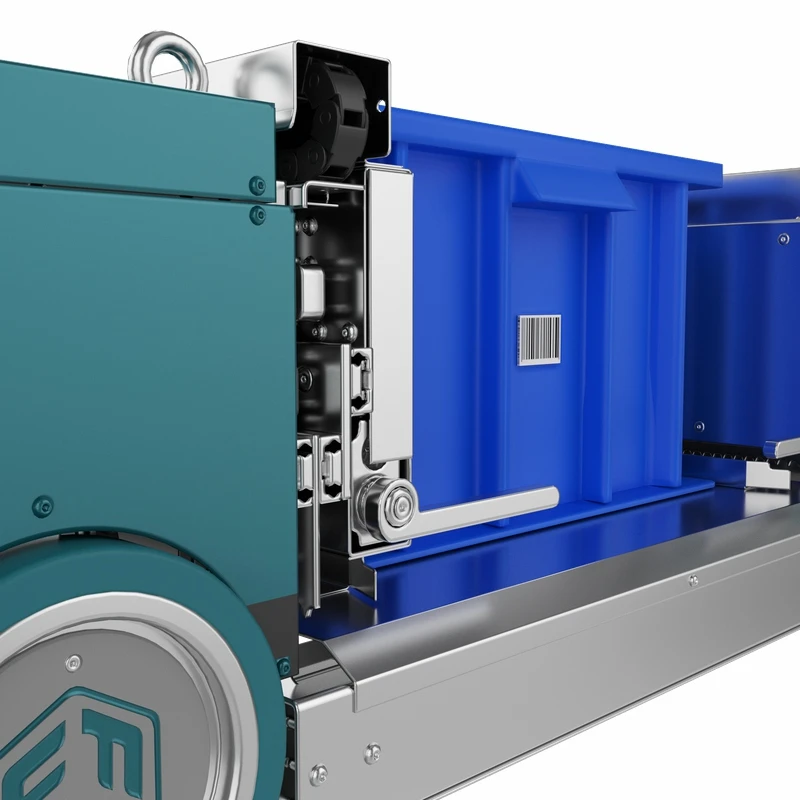

product-800-800
product-800-800
product-800-800

Product Features



  • Patent: independent research and development
  • Load-bearing capacity: High load-bearing capacity, can carry heavy goods
  • Efficiency: reduce product losses and improve production efficiency
  • Quality: affordable price, quality assurance
  • Stability: good stability, reduce shelf collision
  • Information management: can realize information management and reduce investment costs. Customers do not need to participate in operation statistics, and the multi-layer shuttle system will automatically send operation data every day.
  • Can shorten order processing time



Parameters



Technical Parameters

Unit

Typical range/value

Cargo size

mm

L600*W400*H300

Deadweight

kg

125

Overall dimensions

mm

L1145*W760*H370;

Load

t

0.05

Operating power

kw

1

Lifting power

kw

0.4

Fork extension time

s

3

Cargo size

mm

L600*W400*H300

Positioning accuracy

mm

±2

Maximum straight speed

m/min

300

Battery type



lithium iron phosphate battery

Voltage

v

48

Continuous endurance

h

6~8h, charging time: 3h

Using temperature

-10℃~45℃;

Obstacle sensing range

mm

500-3000mm

Communication protocol



Can bus, DP bus, PROFINET Ethernet bus;

Communication method



Infrared optical communication, industrial wireless Ethernet, 5G

Control method



Single-machine automatic and online automatic control method



Application Scenarios



  • Smart factory workshop line warehouse
  • Logistics transfer center warehouse
  • Smart dense finished product warehouse/semi-finished product warehouse/raw material warehouse
  • Unmanned dark light warehouse
  • Fragile product warehouse/explosion-proof warehouse/dust-free warehouse



Application Industry



Fast-moving consumer goods, food, metal, silicon-based, engineering machinery, automobile, cold chain, electronics, medicine, new energy, chemical industry, transportation....



1

2

3

4

5

6

7
