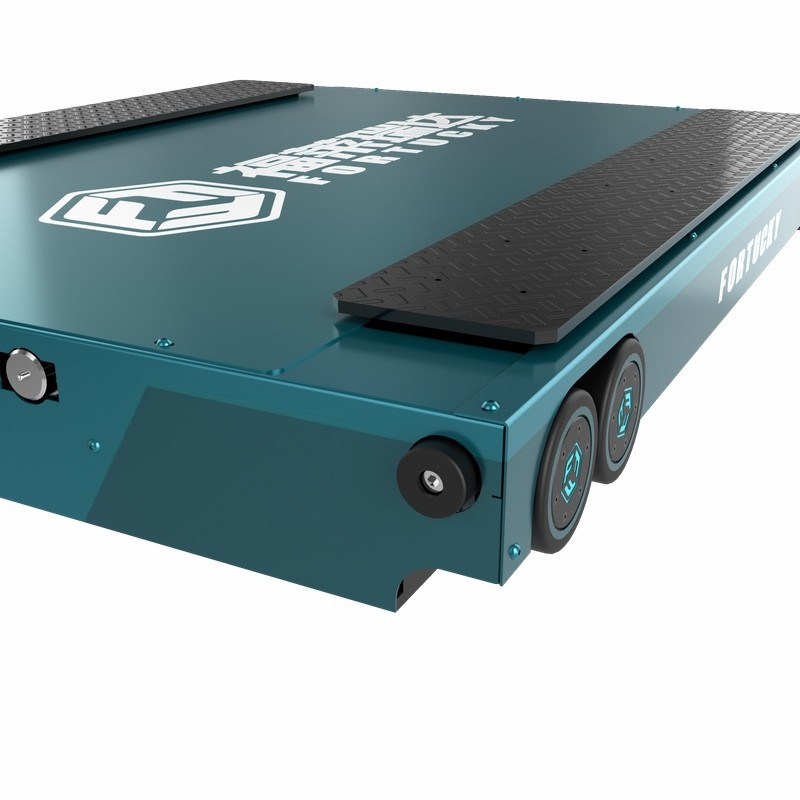

Standard Two-way Shuttle
_2_i4
_3_i3
_4_i2
_5_i1
_i6
7

Standard Two-way Shuttle

Standard two-way shuttle is the core automation equipment of the dense storage system. It delivers materials from the incoming end to the outgoing end according to the production process, and arranges the materials at a pre-set interval. It can realize fully automatic storage operations with stackers and semi-automatic storage operations with high-position forklifts, and can realize first-in-first-out (FIFO) and first-in-last-out (FILO).

Send Inquiry

Add To Inquiry

Description

Technical Parameters

Standard Two-Way Shuttle

Product Description

Product Features

Patent: independent research and development
Efficiency: reduce product losses and improve production efficiency
Quality: affordable price, quality assurance
Stability: good stability, reduce shelf collision
Manual remote control operation, semi-automatic warehousing and outbound
Reduce management costs, operating costs, improve storage efficiency, and ensure employee safety
Flexible operation mode

Parameters

Technical Parameters	Unit	Typical range/value
Equipment size	mm	L1200W951H115
Deadweight	kg	300
Load	kg	0-1500
Operating power	kw	1
Lifting power	kw	0.4
Difference between parent and child tracks	mm	15
Cargo size	mm	D1100W900～D1500W1300
Positioning accuracy	mm	±3
Maximum straight speed	m/min	60
Lifting time	s	3
Battery type		lithium iron phosphate battery
Voltage	v	48
Continuous endurance	h	6～8h, charging time: 3h
Using temperature	℃	-10℃～45℃;
Obstacle sensing range	mm	500-3000mm
Communication protocol		Can bus, DP bus, PROFINET Ethernet bus;
Communication method		Infrared optical communication, industrial wireless Ethernet, 5G
Control method		Single-machine automatic and online automatic control method

Application Scenarios

Smart factory workshop line warehouse
Logistics transfer center warehouse
Smart dense finished product warehouse/semi-finished product warehouse/raw material warehouse
Unmanned dark light warehouse
Fragile product warehouse/explosion-proof warehouse/dust-free warehouse

Application Industry

Fast-moving consumer goods, food, metal, silicon-based, engineering machinery, automobile, cold chain, electronics, medicine, new energy, chemical industry, transportation....
